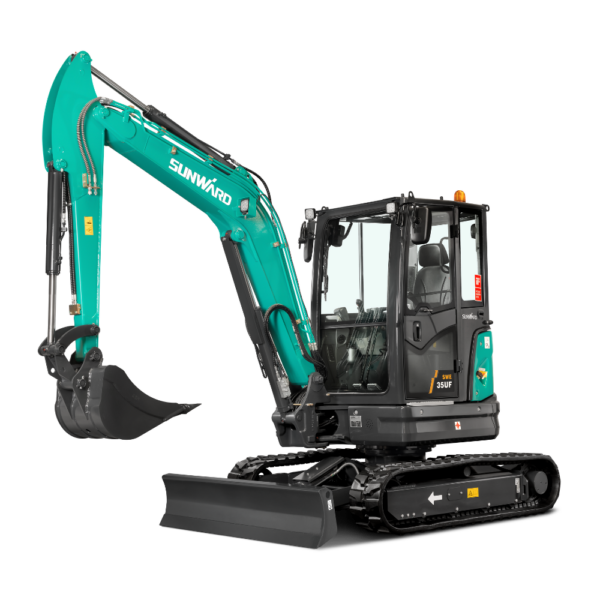

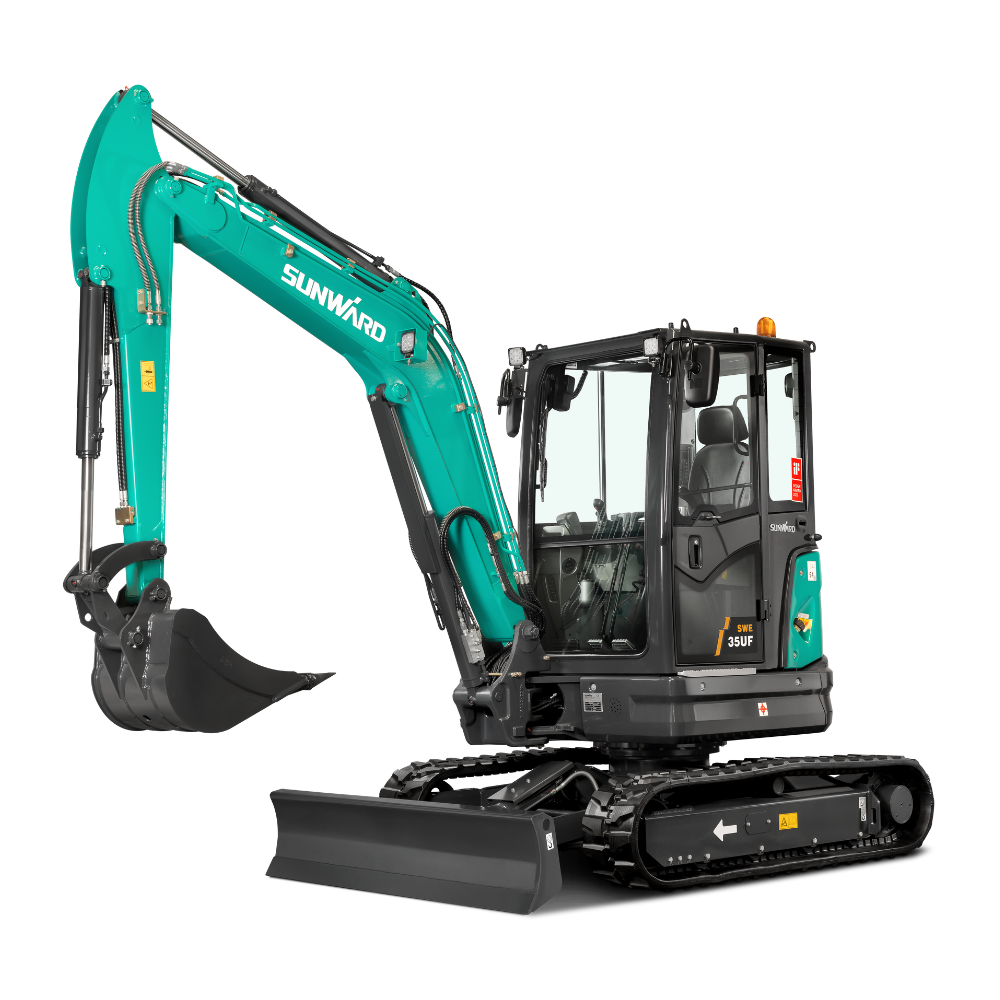

Sunward SWE 35UF

GST is included in price. Shipping calculated at checkout.

The Sunward SWE 35UF mini excavator is the largest mini excavator in the Sunward range. The zero-tail SWE35UF can handle bigger projects than its smaller companions while also maintaining good performance, maneuverability, and speed on the job. With a ROPS / FOPS cab outfitted with A/C and heat, this machine can keep going no matter what.

In the Sunward tradition of always offering the best value for money, the SWE 35UF is no exception. It offers many features and up to 5 years of warranty as standard at the right price. Of course, because we know that safety and comfort should go hand in hand, the SWE 35UF keeps you safe and provides comfort in all working conditions.

Emission rating: EU Stage V

Operating weight: 3 850 ‒ 3 750 kg

Power output: 18.2 kW

Max. digging depth: 3 120 mm

Width: 1 700 mm

Specifications

Discover all the other advantages of the Sunward SWE 35UF.

Cab

Type of cab: Cab or Canopy

Dimensions

Operating weight: 3,850 ‒ 3,750 kg

Standard bucket capacity: 0,11 m³

Shipping length: 4, 890 mm

Shipping width: 1,700 mm

Height over cabin: 2, 555 mm

Engine:

Model Kubota: D1703-E4B-SWD-1

Emission rating: EU Stage V

Displacement: 1.647 L

Rated power output: 18.2 kW

Hydraulic System:

Type 1 variable piston pump

Displacement 88 L/min

Hydraulic pressure 24.5 Mpa

Working Range:

Max. digging depth 3 120 mm

Max. digging reach 5 390 mm

Max. bucket digging force 31.8 kN

Max. arm digging force 22.53 kN
