Looking for an excavator that will tear up a job site without taking up too much room?

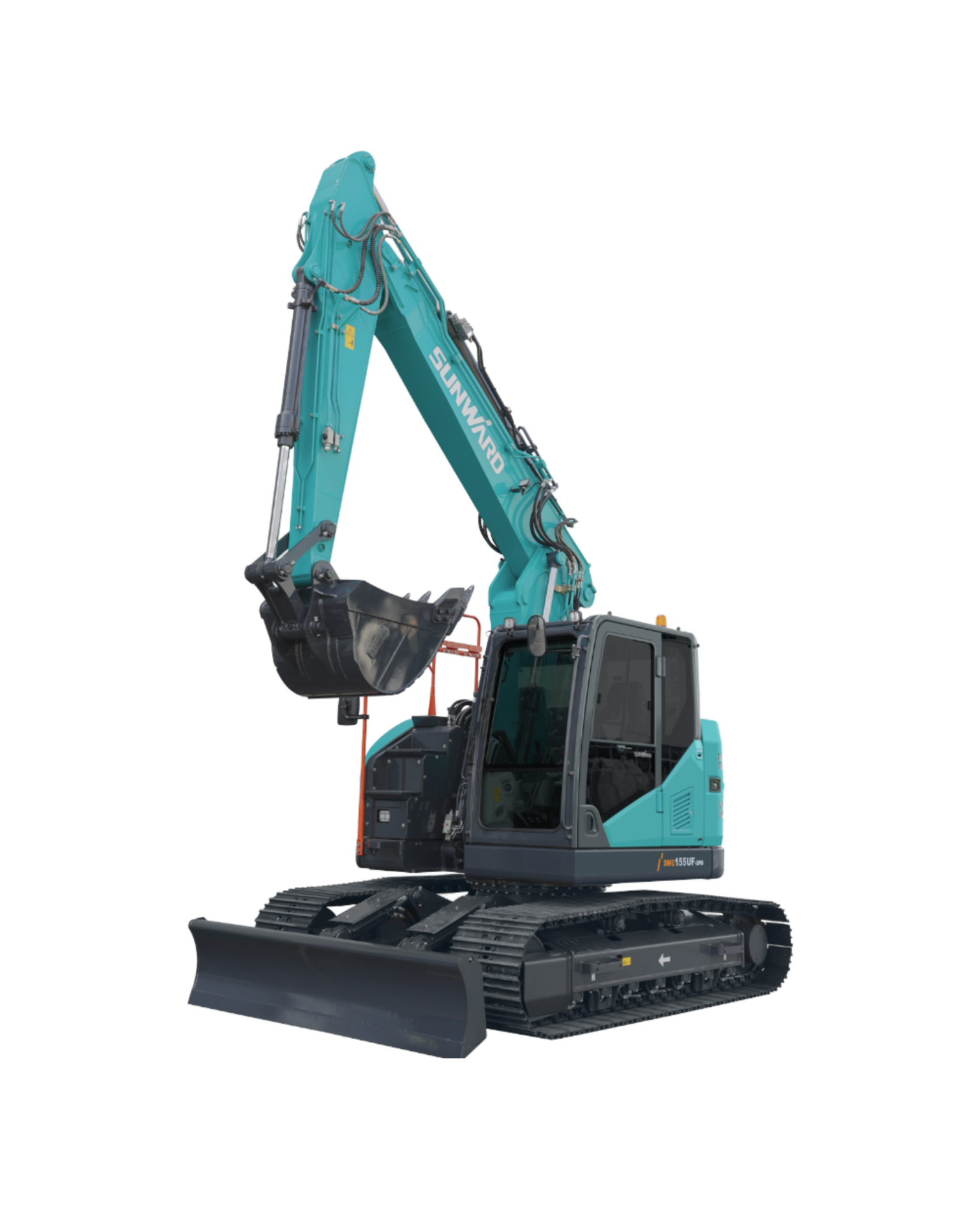

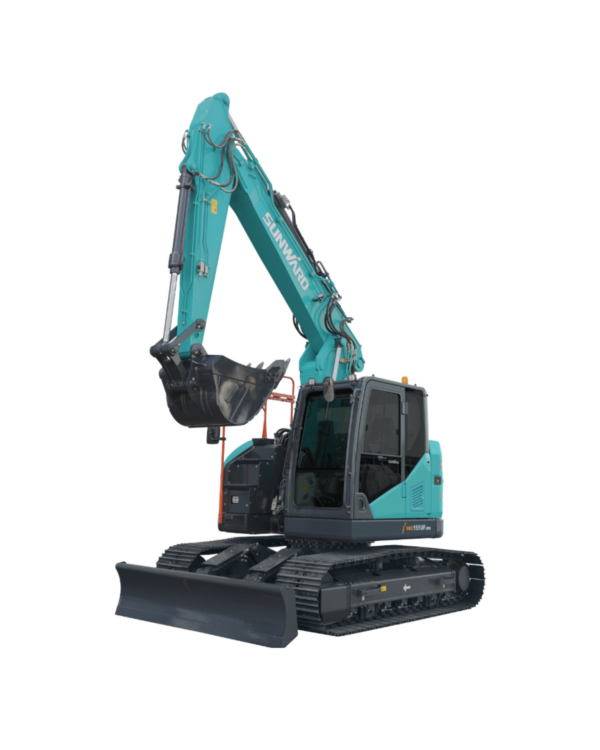

The Sunward SWE 155F medium excavator is the perfect fit for large construction – be it roads or buildings, quarrying, demolition, or forestry.
It is designed to be versatile and durable, with a long lifetime.
The SWE 155F’s masterful design, Cummins EU Stage V engine, and enhanced hydraulics system deliver smooth operation and high productivity.
This top‑of‑the‑line medium excavator offers excellent performance, comfortable and safe operation, and convenient maintenance.
Emission rating: EU Stage V
Operating weight: 15,600 kg
Power output: 93 kW
Max. digging depth: 5,525 mm
Width: 2,600 mm
Specifications:
Discover all the other advantages of the Sunward SWE 155F.
Dimensions:
Operating weight: 15,600 kg
Standard bucket capacity: 0,61 m³
Shipping length: 7,825 mm
Shipping width: 2,600 mm
Height over canopy: 2,825 mm
Engine:
Model: Cummins QSF3. 8
Emission rating: EU Stage V
Displacement: 3.8 L
Rated power output: 93 kW
Hydraulic System:
Type: 2 variable piston pumps
Displacement: 2×126.4 L/min
Hydraulic pressure: 31.4/34.3 Mpa
Working Range:
Max. digging depth: 5,525 mm
Max. digging reach: 8,370 mm
Max. bucket digging force: 100 kN
Max. arm digging force: 76 kN
